JavaScript plugins

Datasette can run custom JavaScript in several different ways:

There are no limitations on what this JavaScript can do. It is executed directly by the browser, so it can manipulate the DOM, fetch additional data and do anything else that JavaScript is capable of.

Warning

Custom JavaScript has security implications, especially for authenticated Datasette instances where the JavaScript might run in the context of the authenticated user. It's important to carefully review any JavaScript you run in your Datasette instance.

The datasette_init event

Datasette emits a custom event called datasette_init when the page is loaded. This event is dispatched on the document object, and includes a detail object with a reference to the datasetteManager object.

Your JavaScript code can listen out for this event using document.addEventListener() like this:

document.addEventListener("datasette_init", function (evt) {
    const manager = evt.detail;
    console.log("Datasette version:", manager.VERSION);
});

datasetteManager

The datasetteManager object

VERSION - string

The version of Datasette

plugins - Map()

A Map of currently loaded plugin names to plugin implementations

registerPlugin(name, implementation)

Call this to register a plugin, passing its name and implementation

makeColumnField(context)

Calls the makeColumnField() hook on registered plugins, returning the first custom insert/edit field control that matches the provided field context. This is used internally by Datasette's row insert and edit dialogs.

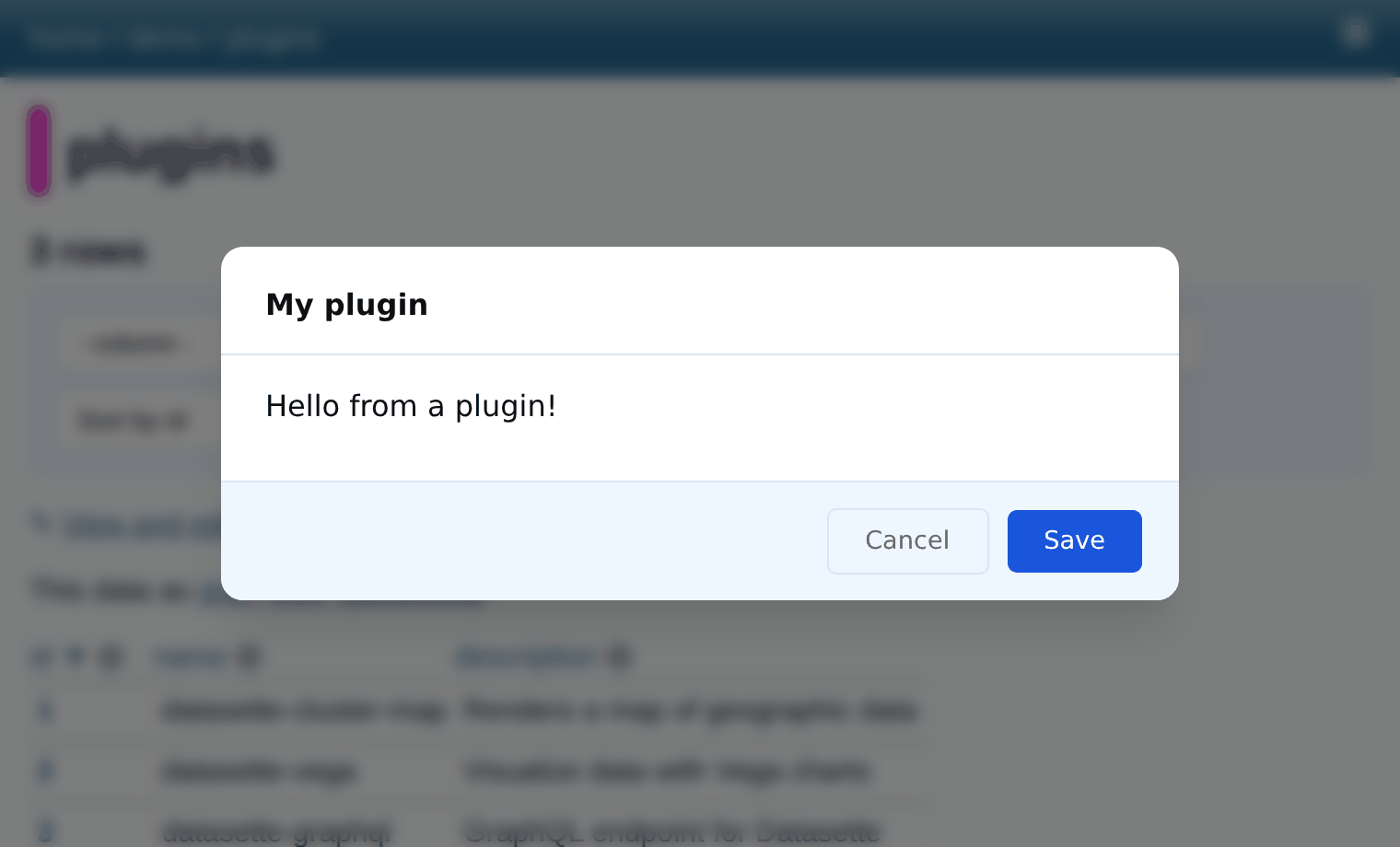

createModal(options)

Creates a <datasette-modal> element, appends it to the page and returns it. Returns null in browsers without <dialog> support.

selectors - object

An object providing named aliases to useful CSS selectors, listed below

JavaScript plugin objects

JavaScript plugins are blocks of code that can be registered with Datasette using the registerPlugin() method on the datasetteManager object.

The implementation object passed to this method should include a version key defining the plugin version, and one or more of the following named functions providing the implementation of the plugin:

makeJumpSections(context)

This method should return a JavaScript array of objects defining additional sections to be added to the blank state of the / jump menu, before the user starts typing a search.

It should return an array of objects, each with the following:

id - string

A unique string ID for the section, for example agent-chat

render(node, context) - function

A function that will be called with a DOM node to render the section into

Datasette passes a context object to both makeJumpSections(context) and render(node, context). It has the following keys:

navigationSearch

The <navigation-search> custom element instance.

container - only for render()

The .results-container element used by the jump menu.

input - only for render()

The .search-input element used by the jump menu.

This example shows how a plugin might add a button for starting a new chat:

document.addEventListener('datasette_init', function(ev) {
  ev.detail.registerPlugin('agent-plugin', {
    version: 0.1,
    makeJumpSections: (context) => {
      return [
        {
          id: 'agent-chat',
          render: (node, context) => {
            node.innerHTML = '<button type="button">Start a new chat</button>';
            node.querySelector('button').addEventListener('click', () => {
              location.href = '/-/agent/new';
            });
          }
        }
      ];
    }
  });
});

makeAboveTablePanelConfigs()

This method should return a JavaScript array of objects defining additional panels to be added to the top of the table page. Each object should have the following:

id - string

A unique string ID for the panel, for example map-panel

label - string

A human-readable label for the panel

render(node) - function

A function that will be called with a DOM node to render the panel into

This example shows how a plugin might define a single panel:

document.addEventListener('datasette_init', function(ev) {
  ev.detail.registerPlugin('panel-plugin', {
    version: 0.1,
    makeAboveTablePanelConfigs: () => {
      return [
        {
          id: 'first-panel',
          label: 'First panel',
          render: node => {
            node.innerHTML = '<h2>My custom panel</h2><p>This is a custom panel that I added using a JavaScript plugin</p>';
          }
        }
      ]
    }
  });
});

When a page with a table loads, all registered plugins that implement makeAboveTablePanelConfigs() will be called and panels they return will be added to the top of the table page.

makeColumnActions(columnDetails)

This method, if present, will be called when Datasette is rendering the cog action menu icons that appear at the top of the table view. By default these include options like "Sort ascending/descending" and "Facet by this", but plugins can return additional actions to be included in this menu.

The method will be called with a columnDetails object with the following keys:

columnName - string

The name of the column

columnNotNull - boolean

True if the column is defined as NOT NULL

columnType - string

The SQLite data type of the column

isPk - boolean

True if the column is part of the primary key

It should return a JavaScript array of objects each with a label and onClick property:

label - string

The human-readable label for the action

onClick(evt) - function

A function that will be called when the action is clicked

The evt object passed to the onClick is the standard browser event object that triggered the click.

This example plugin adds two menu items - one to copy the column name to the clipboard and another that displays the column metadata in an alert() window:

document.addEventListener('datasette_init', function(ev) {
  ev.detail.registerPlugin('column-name-plugin', {
    version: 0.1,
    makeColumnActions: (columnDetails) => {
      return [
        {
          label: 'Copy column to clipboard',
          onClick: async (evt) => {
            await navigator.clipboard.writeText(columnDetails.columnName)
          }
        },
        {
          label: 'Alert column metadata',
          onClick: () => alert(JSON.stringify(columnDetails, null, 2))
        }
      ];
    }
  });
});

makeColumnField(context)

This method, if present, can provide a custom form field for a column in Datasette's row insert and edit dialogs.

It is designed for plugins that register custom column types using the Python register_column_types() plugin hook. For example, a plugin that defines a file column type can use makeColumnField() to replace a plain text input with a file picker, and a plugin that defines a rich text column type can use it to enhance the field with an editor.

Datasette calls makeColumnField(context) on each registered JavaScript plugin when it renders an editable insert/edit field. Plugins should inspect the context object and only return a control object if they can handle that field. Otherwise, use a bare return;.

The first plugin to return a truthy control object is used for that field. Plugins are called in registration order. If a plugin raises an exception, Datasette logs the error to the browser console and continues to the next plugin.

The row dialog tracks the value that will be sent to the insert/update API. The context object describes the column and form environment; custom controls should read and write field values using the field helper object passed to render(field).

Context object

makeColumnField(context) is called with a context object describing the field. The current context object has these keys:

mode - string

"insert" or "edit".

database - string or null

The database name.

table - string or null

The table name.

tableUrl - string or null

The path to the table page, including any configured base URL prefix.

column - string

The column name.

columnType - object or null

The configured Datasette column type for this column, if one exists. This is null if no column type has been configured.

If present, this object has exactly these keys:

type - string

The registered column type name, matching the name attribute of the Python ColumnType subclass.

config - object

Configuration for this specific column type assignment. This is {} if no configuration has been set.

sqliteType - string or null

The SQLite affinity for this column, if known. This is one of "TEXT", "INTEGER", "REAL", "BLOB", "NUMERIC" or null if Datasette could not determine the affinity.

notNull - boolean

True if the column is defined as NOT NULL.

isPk - boolean

True if this column is part of the table's primary key.

defaultExpression - string or null

The SQLite default expression for the column, if available. This is null if the column has no SQLite default. For example, a column defined with DEFAULT (datetime('now')) will have "datetime('now')" here. This is the expression from the table schema, not the actual value SQLite will insert.

form - HTMLFormElement or null

The row insert/edit form element.

dialog - HTMLDialogElement or null

The modal dialog element.

Returned control object

A plugin that wants to handle a field should return an object. Datasette currently recognizes these properties:

useTextarea - boolean, optional

If true, Datasette creates a <textarea> as the underlying field.input before calling render(). If omitted, Datasette chooses either an <input> or <textarea> based on the column type and current value.

render(field) - function

Called once to render the custom field UI. field is a helper object described below.

The recommended pattern is to return a DOM node from render(). Datasette appends that node to field.root, a <div> inside the control area for that field in the row insert/edit dialog. A plugin can alternatively manipulate field.root directly and return nothing.

focus(field) - function, optional

Called when Datasette wants to focus this field, for example when focusing the first editable field in the dialog. Use this to focus the most useful interactive element inside the custom UI.

destroy(field) - function, optional

Called when Datasette tears down the insert/edit form. Use this to remove event listeners, close nested pickers, revoke object URLs, clear timers, or release other resources.

The field helper object

The field object passed to render(field), focus(field) and destroy(field) provides stable IDs, DOM elements and value helpers for integrating with the row insert/edit dialog:

context - object

The original context object passed to makeColumnField().

id - string

The ID Datasette assigned to field.input, the backing <input> or <textarea> element.

labelId - string

The ID of the visible field label.

descriptionId - string

The ID of the field metadata/help text. This metadata can include details such as Primary key, Required, Current value: NULL or Custom type: file.

root - HTMLElement

The empty <div> container created by Datasette for this custom field. It is inside the control area for the field in the row insert/edit dialog, next to the field label and above the field metadata. Datasette appends the DOM node returned by render(field) to this element. Plugins can alternatively manipulate this element directly and return nothing from render(field).

input - HTMLInputElement or HTMLTextAreaElement

The core-owned backing form control. Plugins can keep this visible, wrap it or hide it, but should use the value helper methods below rather than mutating input.value directly.

control

An alias for input.

meta - HTMLElement or null

The field metadata/help text element.

form - HTMLFormElement or null

The containing row insert/edit form.

dialog - HTMLDialogElement or null

The containing modal dialog.

getValue() - function

Returns the current value for this field.

Datasette uses string values by default. Insert fields for "INTEGER" and "REAL" SQLite columns return numbers, or null if left blank. Plugins can use strings, numbers, booleans or null. If a plugin is editing structured data stored in a SQLite TEXT column, such as JSON, it should serialize that data to a string before calling setValue().

setValue(value) - function

Sets the current value for this field. value should be a string, number, boolean or null.

Calling setValue() also stops using the SQLite default for the field, if it was previously selected.

getInitialValue() - function

Returns the submitted-value representation the field had when the form was rendered. For edit forms this is the raw row value from the database. For insert forms this is the blank starting value.

hasChanged() - function

Returns true if the field has changed since Datasette last considered it unmodified. By default that means the field state when the insert/edit form was rendered.

clearValue() - function

Sets the value to null.

markClean() - function

Tells Datasette to treat the field's current state as unmodified. After calling this method, hasChanged() returns false until the field value changes again or its SQLite-default state changes.

This is useful when a plugin rewrites the starting value into an equivalent representation while initializing its editor. For example, a rich text editor might normalize empty HTML or reserialize its initial document before the user has made any edits.

isUsingSqliteDefault() - function

Returns true if the insert dialog is currently set to omit this column and use the SQLite default.

setValidity(message) - function

Sets a custom validation message for this field, marks the backing input with aria-invalid="true" and shows the message in the field metadata area. Pass an empty string to clear the error.

clearValidity() - function

Clears any custom validation message previously set by setValidity().

Submitted value contract

The field.setValue() method accepts the following value types:

  • string

  • number

  • boolean

  • null

These values are used as column values in requests to the insert rows and update row JSON APIs.

Plugins should not pass objects or arrays to field.setValue(). If a column stores structured data in SQLite, such as JSON in a TEXT column, the plugin should serialize that data first and submit the serialized string. Client-side parsing can still be useful for validation or editor state, but the submitted value should match the SQLite value Datasette should write.

Value helpers

Custom fields should use field.getValue() and field.setValue(value) for value handling:

const currentValue = field.getValue();
field.setValue("new value");
field.setValue(null);

Plugins can keep the core input visible, wrap it in a custom element, or hide it and provide a richer interface. If the input is hidden, the custom UI must still expose an accessible name, state and keyboard interaction.

field.setValue() updates both field.input and the value used in the insert/update request.

For example, a file picker that stores a selected file ID can hide the backing input and call field.setValue() when the selection changes:

field.input.type = "hidden";
field.setValue(fileId);

For insert forms with a SQLite default, field.isUsingSqliteDefault() indicates whether Datasette will omit that column from the insert payload. Calling field.setValue(value) automatically stops using the SQLite default.

Lazy loading large controls

The JavaScript file that registers makeColumnField() should be small. If the actual control is large, load it from inside render() using dynamic import(). That way the heavier code is only downloaded after a user opens an insert/edit dialog containing a matching column type.

const editorUrl = new URL("./editor.js", import.meta.url).href;

document.addEventListener("datasette_init", function (event) {
  event.detail.registerPlugin("my-editor", {
    version: "0.1",

    makeColumnField(context) {
      if (!context.columnType || context.columnType.type !== "my-editor") {
        return;
      }
      return {
        useTextarea: true,
        render(field) {
          import(editorUrl).then(function () {
            // Enhance field.input here.
          });
          return field.input;
        }
      };
    }
  });
});

Example: textarea-backed custom element

This example handles a markdown-editor column type by asking Datasette for a textarea and wrapping that textarea in a custom <my-markdown-editor> Web Component element:

document.addEventListener("datasette_init", function (event) {
  event.detail.registerPlugin("markdown-editor", {
    version: "0.1",

    makeColumnField(context) {
      if (!context.columnType || context.columnType.type !== "markdown-editor") {
        return;
      }

      return {
        useTextarea: true,

        render(field) {
          const editor = document.createElement("my-markdown-editor");
          editor.appendChild(field.input);

          if (field.labelId) {
            field.input.setAttribute("aria-labelledby", field.labelId);
          }
          if (field.descriptionId) {
            field.input.setAttribute("aria-describedby", field.descriptionId);
          }

          return editor;
        },

        focus(field) {
          const editor = field.root.querySelector("my-markdown-editor");
          if (editor && editor.focus) {
            editor.focus();
          } else {
            field.input.focus();
          }
        }
      };
    }
  });
});

Accessibility

Custom fields are responsible for preserving the accessibility of the form:

  • The visible field label should name the control. Use field.labelId with aria-labelledby when wrapping or replacing the visible input.

  • Field metadata should remain available to assistive technology. Use field.descriptionId with aria-describedby.

  • Keyboard users must be able to operate every part of the custom field.

  • If the field opens an inline picker or other nested UI, Escape should close that nested UI first and return focus to a sensible element.

  • If a control performs asynchronous loading, expose loading and error states in the UI. Use appropriate ARIA live regions where the state change is important to understand the field.

  • If a plugin hides field.input, the replacement UI must still make the current value and available actions clear.

Plugins should not submit the row themselves from inside makeColumnField() controls. Datasette owns the insert/edit dialog lifecycle, form submission, API call, error handling and row refresh.

Selectors

These are available on the selectors property of the datasetteManager object.

const DOM_SELECTORS = {
  /** Should have one match */
  jsonExportLink: ".export-links a[href*=json]",

  /** Event listeners that go outside of the main table, e.g. existing scroll listener */
  tableWrapper: ".table-wrapper",
  table: "table.rows-and-columns",
  aboveTablePanel: ".above-table-panel",

  // These could have multiple matches
  /** Used for selecting table headers. Use makeColumnActions if you want to add menu items. */
  tableHeaders: `table.rows-and-columns th`,

  /** Used to add "where"  clauses to query using direct manipulation */
  filterRows: ".filter-row",
  /** Used to show top available enum values for a column ("facets") */
  facetResults: ".facet-results [data-column]",
};
